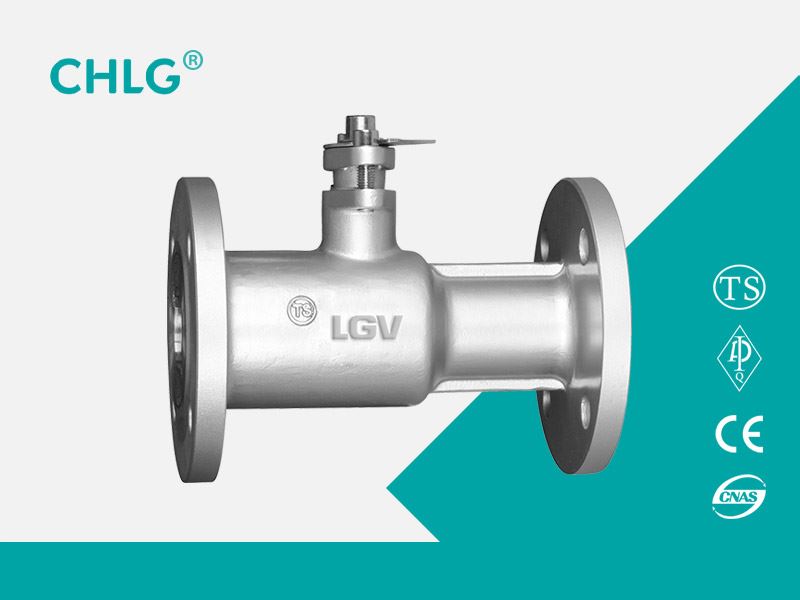

Integral high-temperature ball valve The company designs the overall high-temperature ball valve is a new type of sealing material for the valve seat, PTFE seals made of similar products, the service life of 3-5 times. With stable performance, reliable sealing, friction, light switch, high temperature, wear-resistant, oil, corrosion-resistant, long life and other advantages. High-temperature ball valve and stop valve, plunger valve, drain valve, the length of the structure, expanding the use of the ball valve is widely used in petroleum, chemical, rubber, paper, pharmaceutical and other industries, can replace the globe valve, plunger valve, quick drain valve . Applicable medium: water, steam, HTF and other acids, temperature: ≤ 350 ℃.
product description
Integral high-temperature ball valve The company designs the overall high-temperature ball valve is a new type of sealing material for the valve seat, PTFE seals made of similar products, the service life of 3-5 times. With stable performance, reliable sealing, friction, light switch, high temperature, wear-resistant, oil, corrosion-resistant, long life and other advantages. High-temperature ball valve and stop valve, plunger valve, drain valve, the length of the structure, expanding the use of the ball valve is widely used in petroleum, chemical, rubber, paper, pharmaceutical and other industries, can replace the globe valve, plunger valve, quick drain valve . Applicable medium: water, steam, HTF and other acids, temperature: ≤ 350 ℃.
Features
(1) small fluid resistance, full-diameter ball valve basically no flow resistance.
(2) Simple structure, small size, light weight.
(3) close and reliable. It has two sealing surfaces, and the ball valve sealing surface material widely used in a variety of plastic, good sealing, can achieve a complete seal. In the vacuum system has also been widely used.
(4) easy to operate, open and close rapidly, from full open to full close as long as 90 ° rotation, easy to remote control.
(5) easy maintenance, ball valve structure is simple, the seals are generally active, demolition and replacement are more convenient.
(6) In the fully open or fully closed, the sealing surface of the ball and the valve seat is separated from the medium, and the passage of the medium will not cause the erosion of the valve sealing surface.
(7) a wide range of applications, the path from small to a few millimeters, up to a few meters, from high vacuum to high pressure can be applied.
(8) The ball valve can be used in the medium with suspended solid particles because the ball valve is wiping during opening and closing.
Performance parameters
|
Model |
Work pressure（MPa） |
Strength test pressure（MPa） |
Seal test pressure（MPa） |
proper temperature（℃） |
Suitable media |
|
QJ41M/F |
1.6 |
2.4 |
1.8 |
-28~+300(M/F) |
Thermal oil, water, steam, gas, oil, nitric acid corrosive media, acetic acid corrosive media |
|
QJ41M/F |
2.5 |
3.8 |
2.8 |
-28~+350(PPN) |
Main parts and materials
|
Serial number |
Part name |
Material |
|
1 |
Body |
Ductile iron, carbon steel, cast stainless steel |
|
2 |
Sealing ring |
Wear-resistant graphite, para-benzene |
|
3 |
Ball |
Stainless steel |
|
4 |
Filler |
Teflon |
|
5 |
Packing gland |
35# |
|
6 |
Valve stem |
Chrome stainless steel |
|
7 |
Handle |
Carbon steel |
Main connection size
|
Nominal diameterDN |
The main form of connection size |
|||||||
|
L |
D |
D1 |
D2 |
B |
Z-d |
H |
W |
|
|
QJ41M/F-16C |
||||||||
|
15 |
130 |
95 |
65 |
45 |
14 |
4-14 |
78 |
140 |
|
20 |
140 |
105 |
75 |
55 |
14 |
4-14 |
84 |
160 |
|
25 |
150 |
115 |
85 |
65 |
14 |
4-14 |
95 |
180 |
|
32 |
165 |
135 |
100 |
78 |
16 |
4-18 |
150 |
250 |
|
40 |
180 |
145 |
110 |
85 |
16 |
4-18 |
150 |
300 |
|
50 |
200 |
160 |
125 |
100 |
16 |
4-18 |
170 |
350 |
|
65 |
220 |
180 |
145 |
120 |
18 |
4-18 |
195 |
350 |
|
80 |
250 |
195 |
160 |
135 |
20 |
8-18 |
215 |
400 |
|
100 |
280 |
215 |
180 |
155 |
20 |
8-18 |
250 |
500 |
|
125 |
320 |
145 |
210 |
185 |
22 |
8-18 |
265 |
600 |
|
150 |
360 |
280 |
240 |
210 |
24 |
8-23 |
270 |
800 |
|
200 |
400 |
335 |
295 |
265 |
26 |
12-23 |
330 |
800 |
|
QJ41M/F-25 |
||||||||
|
15 |
130 |
95 |
65 |
45 |
16 |
4-14 |
103 |
100 |
|
20 |
140 |
105 |
75 |
55 |
16 |
4-14 |
112 |
160 |
|
25 |
150 |
115 |
85 |
65 |
16 |
4-14 |
123 |
160 |
|
32 |
165 |
135 |
100 |
78 |
18 |
4-18 |
150 |
250 |
|
40 |
180 |
145 |
110 |
85 |
18 |
4-18 |
156 |
250 |
|
50 |
200 |
160 |
125 |
100 |
20 |
4-18 |
172 |
350 |
|
65 |
220 |
180 |
145 |
120 |
22 |
8-18 |
197 |
350 |
|
80 |
250 |
195 |
160 |
135 |
22 |
8-18 |
222 |
450 |
|
100 |
280 |
230 |
190 |
160 |
24 |
8-23 |
253 |
450 |
|
125 |
320 |
270 |
220 |
188 |
28 |
8-25 |
275 |
600 |
|
150 |
360 |
300 |
250 |
218 |
30 |
8-25 |
286 |
800 |
|
200 |
400 |
360 |
310 |
278 |
34 |
12-25 |
340 |
1200 |
