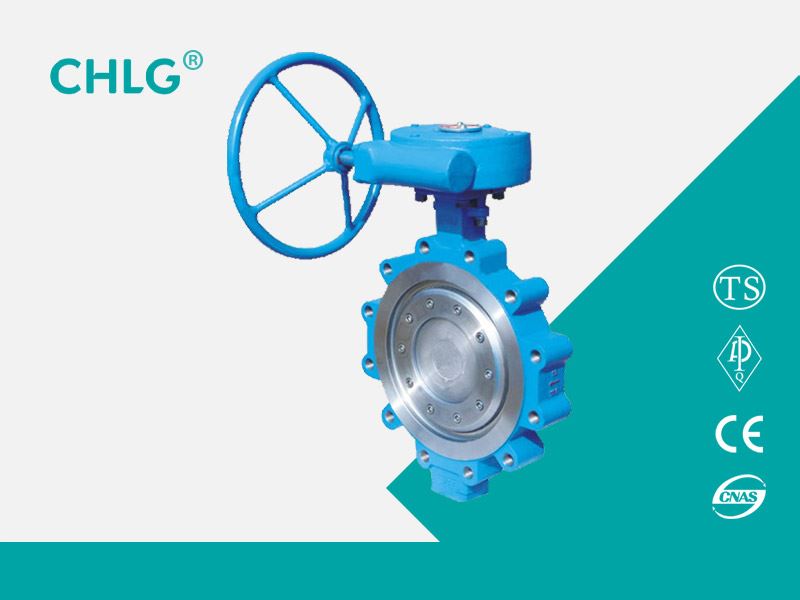

High Performance Wafer Butterfly Valve
Name:

High Performance Wafer Butterfly Valve

Category：

Butterfly valve

Remark:

D373H and D373Y high-performance wafer butterfly valves adopt precise J -shaped elastic seal ring and three-eccentric multi-layer metal hard seal structure, which are widely used in metallurgy, power, petrochemical, water supply and drainage and municipal administration with medium temperature ≤ 425 ℃ It is used for regulating flow and carrying fluid in industrial pipelines such as construction.

Inquiry Contact us

【Product Usage】

D373H and D373Y high-performance wafer butterfly valves adopt precise J -shaped elastic seal ring and three-eccentric multi-layer metal hard seal structure, which are widely used in metallurgy, power, petrochemical, water supply and drainage and municipal administration with medium temperature ≤ 425 ℃ It is used for regulating flow and carrying fluid in industrial pipelines such as construction.



【Features】

1. The high-performance wafer butterfly valve adopts a three-eccentric sealing structure, the valve seat and the butterfly plate have almost no wear, and have a tighter sealing function

2. The sealing ring is made of stainless steel, which has the dual advantages of metal hard seal and elastic seal. It has excellent sealing performance under low and high temperature conditions, has the characteristics of corrosion resistance and long service life

3. The sealing surface of the butterfly plate adopts surfacing cobalt-based hard alloy, and the sealing surface is wear-resistant and has a long service life.

4. Large size butterfly board adopts quilt structure, high strength, large flow area and small flow resistance

5. Wafer type hard-sealed butterfly valve has a bidirectional sealing function. It is not restricted by the flow direction of the medium during installation, nor is it affected by the position of the space.

6. The driving device can be installed in multiple stations (rotating 90 ° or 180 °), which is convenient for users to use


【Performance parameters】

model

D373H-10C ~ 40

D373H-10P ~ 40

D373Y-10C ~ 40

D373Y-10P ~ 40

Working pressure ( MPa )

1.0 ~ 4.0

Applicable temperature (℃)

≤ 300

Applicable medium

Water, oil, steam, etc.

material

Valve body, butterfly plate

Cast steel

Austenitic stainless steel

Stem

40Cr

Austenitic stainless steel

Sealing surface matching material

Stainless steel / stainless steel

Stainless steel / Stellite

filler

Flexible graphite

Polytetrafluoroethylene



【Main appearance and connection size 】

Nominal diameter DN

Main dimensions

Flange size

1.0MPa

1.6MPa

2.5MPa

L

H1

H

D1

n- Φ d

D1

n- Φ d

D1

n- Φ d

50

43

255

340

125

4-18

125

4-18

125

4-18

65

46

280

370

145

4-18

145

4-18

145

4-18

80

49

285

385

160

4-18

160

4-18

160

4-18

100

56

310

430

180

4-18

180

4-18

190

4-22

125

64

310

440

210

4-18

210

4-18

220

4-26

150

70

315

475

240

4-23

240

4-22

250

4-26

200

71

380

590

295

4-23

295

4-22

310

4-26

250

76

460

710

350

4-23

355

4-26

370

4-30

300

83

475

725

400

4-23

410

4-26

430

4-30

350

92

510

830

460

4-23

470

4-26

490

4-33

400

102

550

900

515

4-25

525

4-30

550

4-36

450

114

590

970

565

4-25

585

4-30

600

4-36

500

127

610

1030

620

4-25

650

4-33

660

4-36

600

154

660

1150

725

4-30

770

4-36

770

4-39

700

165

730

1220

840

4-30

840

4-36

875

4-42

800

190

810

1300

950

4-34

950

4-39

990

4-48

900

203

930

1480

1050

4-34

1050

4-39

1090

4-48

1000

216

1020

1600

1160

4-34

1170

4-42

1210

4-56
