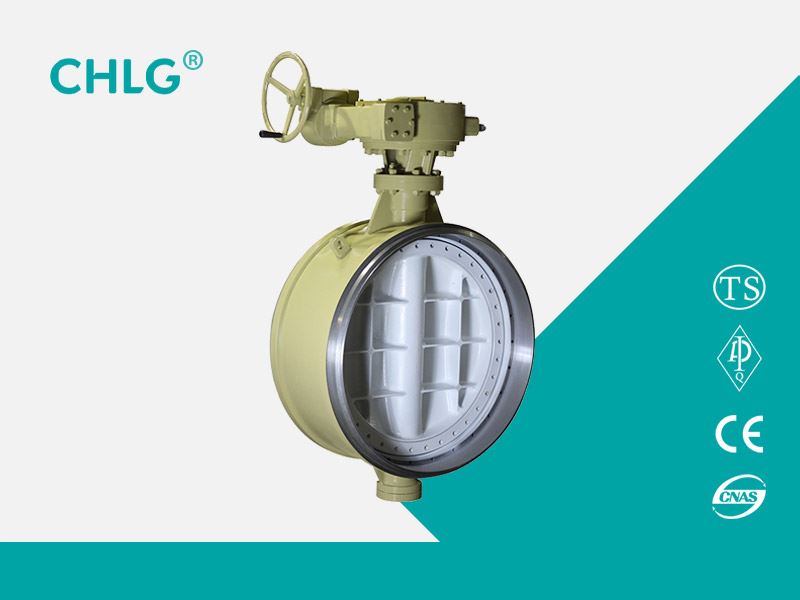

Three eccentric two-way metal seal welding butterfly valve is widely used in water conservancy projects, water, electricity circulating water, oil, chemicals and other industrial pipe for cutting off the flow of media.
Product Usage
Three eccentric two-way metal seal welding butterfly valve is widely used in water conservancy projects, water, electricity circulating water, oil, chemicals and other industrial pipe for cutting off the flow of media.
Features
1. The butterfly valve is bi-directional pressure, two-way metal seal, a special structure can be adjusted seal than the pressure, the use of eccentric S-shaped seat sealing surface, so that the sealing surface is not easy to damage and improve the service life of the valve.
2. Smaller operating torque, turn 90 degrees opening and closing, light and rapid.
3. The flow resistance is small, with good hydraulic characteristics, the flow characteristics of a straight line inclined, energy-saving effect, two-way seal on the water without direction.
4. Reliable sealing, opening and closing life of more than 25,000 times.
5. The valve plate with dual-plate truss-type multi-runner design in line with fluid mechanics.
Executive Standard
Design and manufacture of standards: GB / T 12238-2008, JB / T8527-1997
Structure length standard: GB / T 12221-2005
Connection flange standard: GB / T 9113
Pressure temperature grade: GB / T 12224-2005
Test test standards: GB / T 13927-2008
Performance parameters
|
Model |
D363H-10 |
D363H-10P |
D363H-10R |
|
|
D363H-16 |
D363H-16P |
D363H-16R |
||
|
D363H-25 |
D363H-25P |
D363H-25R |
||
|
D363H-40 |
D363H-40P |
D363H-40R |
||
|
Working pressure（MPa） |
1.0~4.0 |
|||
|
Applicable temperature（℃） |
≤425 |
≤200 |
||
|
Suitable media |
Water, oil or non-corrosive media |
Nitric acid medium |
Acetic acid medium |
|
|
Material |
Body, disc |
WCB |
CF8/304 |
CF3M/316L |
|
Valve stem |
2Cr13 |
304 |
316L |
|
|
Body sealing surface |
Surfacing507 |
－ |
－ |
|
|
Butterfly sealing surface |
304＋Flexible graphite |
304＋PTFE |
304＋PTFE |
|
|
|
Flexible graphite |
PTFE |
PTFE |
|
The main shape and connection size
|
Nominal diameterDN(mm) |
L |
1.0MPa |
1.6MPa |
||
|
H1 |
H |
H1 |
H |
||
|
100 |
190 |
280 |
390 |
280 |
390 |
|
125 |
200 |
300 |
420 |
300 |
420 |
|
150 |
210 |
320 |
460 |
320 |
460 |
|
200 |
230 |
370 |
550 |
370 |
550 |
|
250 |
250 |
420 |
620 |
420 |
620 |
|
300 |
270 |
500 |
750 |
500 |
750 |
|
350 |
290 |
530 |
800 |
530 |
800 |
|
400 |
310 |
570 |
870 |
570 |
870 |
|
450 |
330 |
600 |
920 |
600 |
920 |
|
500 |
350 |
680 |
1040 |
680 |
1040 |
|
600 |
390 |
750 |
1190 |
750 |
1190 |
|
700 |
430 |
810 |
1290 |
810 |
1290 |
|
800 |
470 |
905 |
1440 |
905 |
1440 |
|
900 |
510 |
960 |
1550 |
960 |
1550 |
|
1000 |
550 |
1010 |
1650 |
1010 |
1650 |
|
1200 |
630 |
1175 |
1920 |
1175 |
1920 |
|
1400 |
710 |
1310 |
2170 |
1310 |
2170 |
|
1600 |
790 |
1460 |
2440 |
1460 |
2440 |
|
1800 |
870 |
1560 |
2650 |
1560 |
2650 |
|
2000 |
950 |
1670 |
2860 |
1670 |
2860 |
|
Nominal diameterDN(mm) |
L |
2.5MPa |
4.0MPa |
||
|
H1 |
H |
H1 |
H |
||
|
100 |
190 |
280 |
390 |
280 |
390 |
|
125 |
200 |
300 |
420 |
300 |
420 |
|
150 |
210 |
320 |
460 |
320 |
460 |
|
200 |
230 |
370 |
550 |
370 |
550 |
|
250 |
250 |
420 |
620 |
420 |
620 |
|
300 |
270 |
500 |
750 |
500 |
750 |
|
350 |
290 |
530 |
800 |
530 |
800 |
|
400 |
310 |
570 |
870 |
570 |
870 |
|
450 |
330 |
600 |
920 |
600 |
920 |
|
500 |
350 |
680 |
1040 |
680 |
1040 |
|
600 |
390 |
750 |
1190 |
750 |
1190 |
|
700 |
430 |
810 |
1290 |
/ |
/ |
|
800 |
470 |
905 |
1440 |
/ |
/ |
|
900 |
510 |
960 |
1550 |
/ |
/ |
|
1000 |
550 |
1010 |
1650 |
/ |
/ |
|
1200 |
630 |
1175 |
1920 |
/ |
/ |
|
1400 |
710 |
/ |
/ |
/ |
/ |
|
1600 |
790 |
/ |
/ |
/ |
/ |
|
1800 |
870 |
/ |
/ |
/ |
/ |
|
2000 |
950 |
/ |
/ |
/ |
/ |

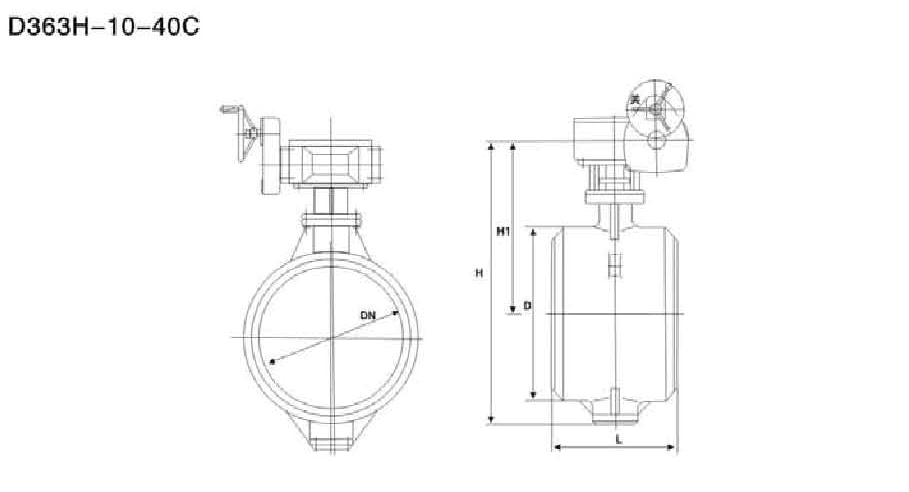

Structure picture
