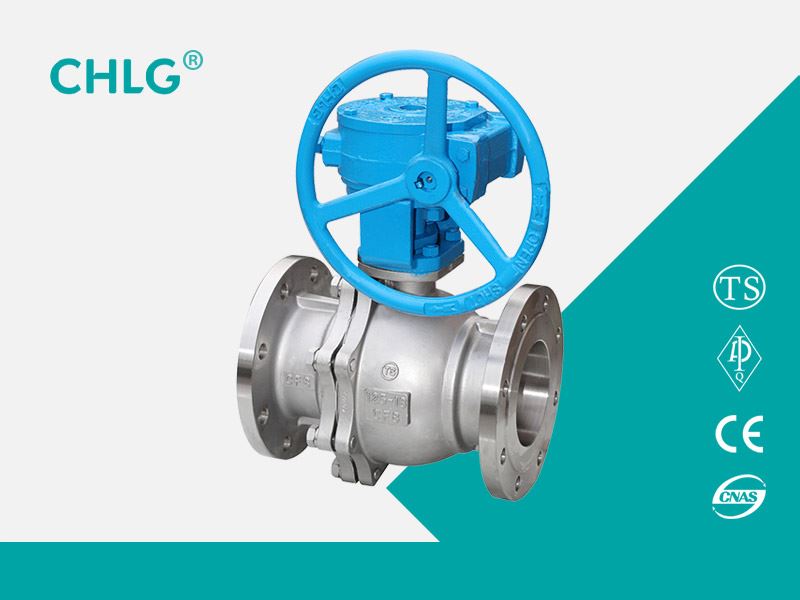

Q341F PN16 ~ PN64 trunnion ball valves are used on various pipelines of Class150 ~ Class1500, PN16 ~ PN64, JIS10K ~ JIS20K for cutting or connecting the medium in the pipeline. Different materials can be selected for water, steam , Oil, liquefied gas, natural gas, gas, nitric acid, acetic acid, oxidizing media, urea and other media.
Product use
Q341F PN16 ~ PN64 fixed ball valves are used on various pipelines of Class150 ~ Class1500, PN16 ~ PN64, JIS10K ~ JIS20K for cutting or connecting the medium in the pipeline. Different materials can be selected for water, steam , Oil, liquefied gas, natural gas, gas, nitric acid, acetic acid, oxidizing media, urea and other media.
Features
1. In a variety of valves, the ball valve flow resistance of the smallest, full-diameter ball valve open, the ball channel, valve body and connecting pipe diameter equal to a diameter, the media can flow almost no loss
2. The ball valve can be turned 90 ° fully open fully open, quick opening and closing. With the same specifications of the gate valve, globe valve comparison, the ball valve small size, light weight, easy to pipe installation
Performance parameters
|
Model |
Q341F-16C |
Q341F-16P |
|
|
Q341F-25C |
Q341F-25P |
||
|
Work pressure（MPa） |
1.6~2.5 |
||
|
proper temperature
（℃）
|
≤180 |
||
|
Suitable media |
Water, steam, oil |
Weak corrosive medium |
|
|
material |
|||
|
Body, bonnet |
Chromium / chrome nickel / chromium nickel molybdenum stainless steel |
Chrome-nickel stainless steel |
|
|
Sealing ring
Flexible Grap
|
Flexible Graphite Gasket / 316 + Flexible Graphite Gasket |
||
|
Filler |
Teflon |
||
Main connection size
|
PN |
DN |
L |
D |
K |
d |
Y |
b |
Z-d0 |
Ws |
Hs |
Hw |
Hd |
|
1.6MPa |
40 |
165 |
145 |
110 |
85 |
- |
16 |
4-18 |
230 |
135 |
- |
- |
|
50 |
203 |
160 |
125 |
100 |
- |
16 |
4-18 |
260 |
150 |
- |
- |
|
|
65 |
222 |
180 |
145 |
120 |
- |
18 |
4-18 |
350 |
180 |
- |
- |
|
|
80 |
241 |
195 |
160 |
135 |
- |
20 |
8-18 |
500 |
195 |
- |
- |
|
|
100 |
305 |
215 |
180 |
155 |
- |
20 |
8-18 |
650 |
245 |
310 |
420 |
|
|
125 |
356 |
245 |
210 |
185 |
- |
22 |
8-18 |
800 |
270 |
330 |
440 |
|
|
150 |
394 |
280 |
240 |
210 |
- |
24 |
8-23 |
1000 |
295 |
390 |
470 |
|
|
200 |
457 |
335 |
295 |
265 |
- |
26 |
12-23 |
- |
- |
440 |
510 |
|
|
600 |
1067 |
840 |
770 |
718 |
- |
48 |
20-41 |
- |
- |
920 |
960 |
|
|
2.5MPa |
40 |
190 |
145 |
110 |
85 |
- |
18 |
4-18 |
230 |
135 |
- |
- |
|
50 |
216 |
160 |
125 |
100 |
- |
20 |
4-18 |
260 |
150 |
- |
- |
|
|
65 |
241 |
180 |
145 |
120 |
- |
22 |
8-18 |
350 |
180 |
- |
- |
|
|
80 |
283 |
195 |
160 |
135 |
- |
22 |
8-18 |
500 |
195 |
- |
- |
|
|
100 |
305 |
230 |
190 |
160 |
- |
24 |
8-23 |
650 |
245 |
310 |
420 |
|
|
125 |
381 |
270 |
220 |
188 |
- |
28 |
8-25 |
800 |
270 |
330 |
440 |
|
|
150 |
403 |
300 |
250 |
218 |
- |
30 |
8-25 |
1000 |
295 |
390 |
470 |
|
|
200 |
502 |
360 |
310 |
278 |
- |
34 |
12-25 |
- |
- |
440 |
510 |
|
|
4.0MPa |
40 |
190 |
145 |
110 |
85 |
76 |
18 |
4-18 |
230 |
135 |
- |
- |
|
50 |
216 |
160 |
125 |
100 |
88 |
20 |
4-18 |
260 |
150 |
- |
- |
|
|
65 |
241 |
180 |
145 |
120 |
110 |
22 |
8-18 |
350 |
180 |
- |
- |
|
|
80 |
283 |
195 |
160 |
135 |
121 |
22 |
8-18 |
500 |
195 |
- |
- |
|
|
100 |
305 |
230 |
190 |
160 |
150 |
24 |
8-23 |
800 |
250 |
320 |
430 |
|
|
125 |
381 |
270 |
220 |
188 |
176 |
28 |
8-25 |
1000 |
280 |
340 |
450 |
|
|
150 |
403 |
300 |
250 |
218 |
204 |
30 |
8-25 |
1200 |
300 |
405 |
480 |
|
|
200 |
502 |
375 |
320 |
282 |
260 |
38 |
12-30 |
- |
- |
450 |
530 |
|
|
6.4MPa |
40 |
241 |
165 |
125 |
95 |
76 |
24 |
4-23 |
260 |
140 |
- |
- |
|
50 |
292 |
175 |
135 |
105 |
88 |
26 |
4-23 |
260 |
160 |
- |
- |
|
|
65 |
330 |
200 |
160 |
130 |
110 |
28 |
8-23 |
350 |
180 |
- |
- |
|
|
80 |
356 |
210 |
170 |
140 |
121 |
30 |
8-23 |
500 |
220 |
- |
- |
|
|
100 |
406 |
250 |
200 |
168 |
150 |
32 |
8-25 |
800 |
250 |
320 |
430 |
|
|
125 |
450 |
295 |
240 |
202 |
176 |
36 |
8-30 |
1000 |
295 |
340 |
450 |
|
|
150 |
495 |
340 |
280 |
240 |
204 |
38 |
8-34 |
1200 |
340 |
405 |
480 |
|
|
200 |
597 |
405 |
345 |
300 |
260 |
44 |
12-34 |
- |
- |
450 |
530 |
|
|
250 |
838 |
580 |
485 |
425 |
313 |
88 |
12-54 |
- |
- |
570 |
720 |
|
|
300 |
965 |
665 |
570 |
510 |
364 |
100 |
16-54 |
- |
- |
680 |
780 |

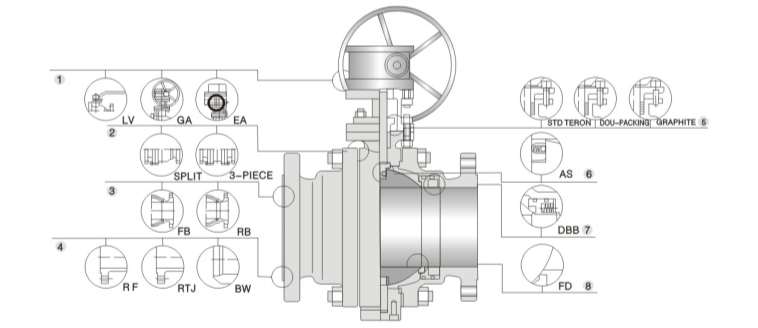

Structure picture
