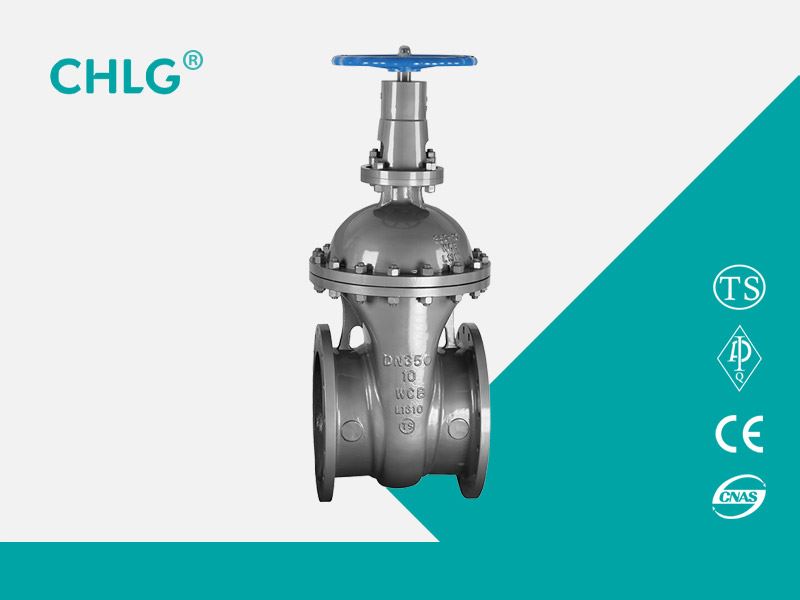

The Z45H-10C and Z45H-16C dark rod wedge type single gate gate valves produced by Lianggu valve Co., Ltd. are manual, flanged connection, dark rod wedge type rigid single plates, and the seat sealing surface material is 13Cr stainless steel, with nominal pressure PN10 ~ PN16 and valve body material of WCB.
Product Usage
The Z45H-10C and Z45H-16C dark rod wedge type single gate gate valves produced by Lianggu valve Co., Ltd. are manual, flanged connection, dark rod wedge type rigid single plates, and the seat sealing surface material is 13Cr stainless steel, with nominal pressure PN10 ~ PN16 and valve body material of WCB.
Performance parameters
|
model |
PN |
Work pressure/MPa |
proper temperature/℃ |
Suitable media |
|
Z45H-10C |
10 |
1.0 |
≤425 |
water |
|
Z45H-16C |
16 |
1.6 |
≤425 |
water |
The main part material
|
model |
material |
|||
|
Body, bonnet, valve plate |
Valve stem |
Sealing surface |
filler |
|
|
Z45H-10C |
WCB |
Chrome stainless steel |
13Cr |
Flexible graphite |
|
Z45H-16C |
WCB |
Chrome stainless steel |
13Cr |
Flexible graphite |
The main shape and connection dimensions
|
Nominal diameter |
The main dimensions and connection dimensions |
|||||
|
L |
D |
D1 |
D2 |
Z-d |
H |
|
|
Z45H-10C |
||||||
|
50 |
178 |
165 |
125 |
102 |
4-Φ19 |
285 |
|
65 |
190 |
185 |
145 |
122 |
4-Φ19 |
305 |
|
80 |
203 |
200 |
160 |
138 |
8-Φ19 |
330 |
|
100 |
229 |
220 |
180 |
158 |
8-Φ19 |
405 |
|
125 |
254 |
250 |
210 |
188 |
8-Φ19 |
460 |
|
150 |
267 |
285 |
240 |
212 |
8-Φ23 |
506 |
|
200 |
292 |
340 |
295 |
268 |
8-Φ23 |
610 |
|
250 |
330 |
395 |
350 |
320 |
12-Φ23 |
730 |
|
300 |
356 |
445 |
400 |
370 |
12-Φ23 |
950 |
|
Z45H-16C |
||||||
|
50 |
178 |
165 |
125 |
102 |
4-Φ19 |
285 |
|
65 |
190 |
185 |
145 |
122 |
4-Φ19 |
305 |
|
80 |
203 |
200 |
160 |
138 |
8-Φ19 |
330 |
|
100 |
229 |
220 |
180 |
158 |
8-Φ19 |
405 |
|
125 |
254 |
250 |
210 |
188 |
8-Φ19 |
460 |
|
150 |
267 |
285 |
240 |
212 |
8-Φ23 |
506 |
|
200 |
292 |
340 |
295 |
268 |
12-Φ23 |
610 |
|
250 |
330 |
395 |
350 |
320 |
12-Φ28 |
730 |
|
300 |
356 |
445 |
400 |
370 |
12-Φ28 |
950 |
|
350 |
381 |
520 |
470 |
438 |
16-Φ28 |
1125 |
|
400 |
406 |
582 |
525 |
490 |
16-Φ31 |
1200 |
