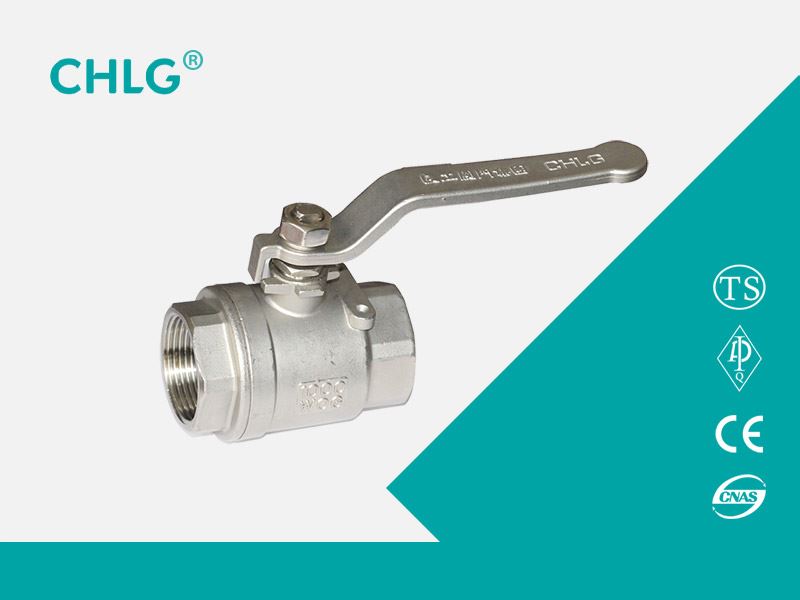

Threaded threaded ball valve and the flange valve is the same type of valve, the difference is that in its closure is a ball, the ball around the centerline of the valve body for rotation to achieve the opening and closing of a valve. Ball valve is mainly used in the pipeline to cut off, distribute and change the flow direction of the medium. Two-piece ball valve, three-piece ball valve, is widely used in recent years, a new type of valve.
product description
Threaded threaded ball valve and the flange valve is the same type of valve, the difference in the closure of its pieces is a ball, the ball around the centerline of the valve body for rotation to achieve open, close a valve. Ball valve is mainly used in the pipeline to cut off, distribute and change the flow direction of the medium. Two-piece ball valve, three-piece ball valve, is widely used in recent years, a new type of valve.
product advantages
1. Fluid resistance is small, the resistance coefficient and the same length of the pipe section.
2. Simple structure, small size, light weight.
3. Tight and reliable, the current ball valve sealing surface material widely used plastic, good sealing, vacuum system has also been widely used.
4. Easy to operate, quick opening and closing, as long as 90 ° rotation from full open to full close, easy to remote control.
5. Easy maintenance, ball valve structure is simple, the seals are generally active, demolition and replacement are more convenient.
6. In the fully open or fully closed, the ball and valve seat sealing surface and media isolation, the media will not cause erosion of the valve sealing surface.
7. Wide range of applications, the path from small to a few millimeters, up to a few meters, from high vacuum to high pressure can be applied.
Features
The main features of the ball valve is its compact structure, reliable sealing, simple structure, easy maintenance, sealing surface and the spherical surface is often closed, easy to be media erosion, easy to operate and repair, suitable for water, solvents, acids and natural gas and other general work Media, but also for poor working conditions of media, such as oxygen, hydrogen peroxide, methane and ethylene, etc., are widely used in various industries. Ball valve body can be a whole, it can be combined.
Main parts and materials
|
1 |
product name |
Threaded ball valve |
|
2 |
Product number |
Q11F |
|
3 |
Nominal diameter |
DN10-100 |
|
4 |
Pressure range |
1.6MPa |
|
5 |
Body material |
Stainless steel |
Main connection size
|
SIZE |
D |
L |
H |
E |
|
1/4" |
11.6 |
55 |
50 |
100 |
|
3/8" |
12.7 |
55 |
50 |
100 |
|
1/2" |
15 |
65 |
60 |
130 |
|
3/4" |
20 |
75 |
64 |
130 |
|
1" |
25 |
88 |
71 |
165 |
|
1-1/4" |
32 |
102 |
78 |
165 |
|
1-1/2" |
38 |
110 |
86 |
190 |
|
2" |
50 |
125 |
95 |
190 |
|
2-1/2" |
65 |
162 |
130 |
250 |
|
3" |
80 |
189 |
148 |
250 |
|
4" |
100 |
260 |
180 |
280 |
