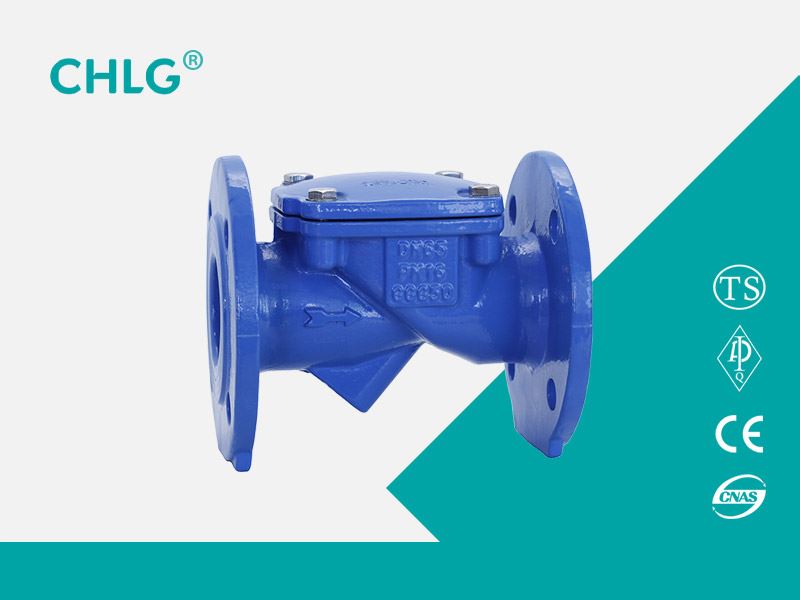

Ball check valve with rubber wrap ball for the valve flap, under the action of the medium, in the body of the overall slide on the left and right scroll, so as to open or close the valve. Closure closed, no water hammer, good sealing performance. Valve body with full flow channel, flow, resistance, head loss less than the swing-type 50%. Horizontal or vertical installation can be used for cold water, hot water, industrial and domestic water pipe network system, more suitable for submersible sewage pump, the medium temperature is 0 ~ 80 ℃.
Product Usage
Ball check valve with rubber wrap ball for the valve flap, under the action of the medium, in the body of the overall slide on the left and right scroll, so as to open or close the valve. Closure closed, no water hammer, good sealing performance. Valve body with full flow channel, flow, resistance, head loss less than the swing-type 50%. Horizontal or vertical installation can be used for cold water, hot water, industrial and domestic water pipe network system, more suitable for submersible sewage pump, the medium temperature is 0 ~ 80 ℃.
Performance parameters
|
model |
Nominal pressure（MPa) |
test pressurePS |
Operating temperature℃ |
|
|
case |
seal |
|||
|
HQ41X-10/16 |
1.0 |
1.5 |
1.1 |
≤80 |
|
1.6 |
2.4 |
1.76 |
||
The main components of the material
|
Part Name |
Material |
|
Body, bonnet |
Cast iron ball, cast steel |
|
Ball rack, baffle |
Cast iron ball, cast steel |
|
Sphere |
Carbon steel ladle rubber |
The main shape and connection dimensions
|
Nominal diameter |
The main dimensions and connection dimensions |
||||||
|
L |
D |
D1 |
D2 |
b |
Z-d |
H |
|
|
HQ41X-10 |
|||||||
|
15 |
130 |
95 |
65 |
45 |
14 |
4-14 |
77 |
|
20 |
150 |
105 |
75 |
55 |
14 |
4-14 |
77 |
|
25 |
160 |
115 |
85 |
65 |
14 |
4-14 |
80 |
|
32 |
180 |
135 |
100 |
75 |
16 |
4-18 |
85 |
|
40 |
200 |
145 |
110 |
85 |
16 |
4-18 |
95 |
|
50 |
230 |
160 |
125 |
100 |
16 |
4-18 |
105 |
|
65 |
290 |
180 |
145 |
120 |
18 |
4-18 |
120 |
|
80 |
310 |
195 |
160 |
135 |
20 |
8-18 |
130 |
|
100 |
350 |
215 |
180 |
155 |
20 |
8-18 |
140 |
|
125 |
400 |
245 |
210 |
185 |
22 |
8-18 |
155 |
|
150 |
480 |
280 |
240 |
210 |
24 |
8-23 |
180 |
|
200 |
600 |
335 |
295 |
265 |
26 |
12-23 |
215 |
|
250 |
730 |
405 |
355 |
320 |
30 |
12-25 |
260 |
|
300 |
850 |
460 |
410 |
375 |
34 |
12-25 |
315 |
|
HQ41X-16 |
|||||||
|
15 |
130 |
95 |
65 |
45 |
16 |
4-14 |
100 |
|
20 |
150 |
105 |
75 |
55 |
16 |
4-14 |
105 |
|
25 |
160 |
115 |
85 |
65 |
16 |
4-14 |
120 |
|
32 |
180 |
135 |
100 |
78 |
18 |
4-18 |
130 |
|
40 |
200 |
145 |
110 |
85 |
18 |
4-18 |
135 |
|
50 |
230 |
160 |
125 |
100 |
20 |
4-18 |
149 |
|
65 |
290 |
180 |
145 |
120 |
22 |
8-18 |
160 |
|
80 |
310 |
195 |
160 |
135 |
22 |
8-18 |
169 |
|
100 |
350 |
230 |
190 |
160 |
24 |
8-23 |
194 |
|
125 |
400 |
270 |
220 |
180 |
28 |
8-25 |
222 |
|
150 |
480 |
300 |
250 |
218 |
30 |
8-25 |
255 |
|
200 |
600 |
360 |
310 |
278 |
34 |
12-25 |
305 |
|
250 |
730 |
425 |
370 |
332 |
36 |
12-30 |
355 |
|
300 |
850 |
485 |
430 |
390 |
40 |
16-30 |
410 |
