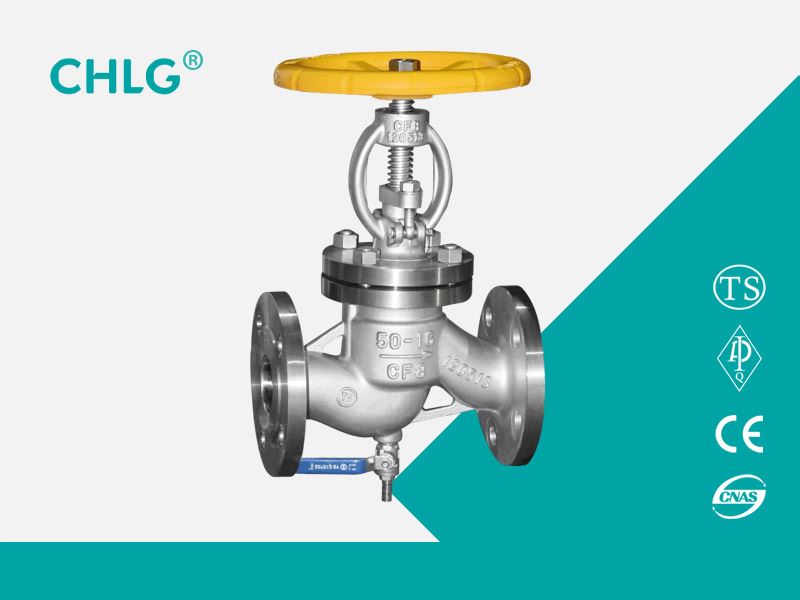

Antibiotic globe valve is mainly used in biological fermentation, pharmaceutical and beer fermentation, amino acid fermentation, biological pesticide fermentation, fermentation of biological fertilizers, various antibiotic fermentation, biological, biochemical, chemical pharmaceutical materials, water, steam, cold control and other fields , The bottom of the hole can be opened according to customer needs, high temperature service life, no dead ends to zero leakage level.
Product Usage
Antibiotic globe valves are mainly used in the fields of biological fermentation, medicine and beer fermentation, amino acid fermentation, biological pesticide fermentation, biological fertilizer fermentation, various antibiotic fermentation, biological, biochemical, chemical and pharmaceutical materials, water, steam, cold control, etc., bottom Drain holes can be opened according to customer needs, with long service life at high temperature and zero leakage without dead angle.
Features
1. It has strong sterilization and detoxification functions to prevent product contamination.
2. The gasket is made of high temperature resistant PTFE composite material. (The highest temperature can reach ≤120 ℃)
3. The sealing gasket, the middle sealing ring of the valve body and the stem packing are all made of high-quality PTFE material. Long life and corrosion resistance to ensure no internal or external leakage.
4. The streamlined flow path makes the pressure loss small.
5. The gasket can be replaced, it is more convenient to disassemble, and the maintenance cost is low.
Main performance specifications
|
Nominal pressure |
1.6 MPa |
|
|
test pressure |
Strength test |
2.4 MPa |
|
Seal test |
1.76 MPa |
|
|
Seal test |
1.76 MPa |
|
|
Gas seal test |
0.6 MPa |
|
|
The maximum working temperature |
120℃ |
|
|
Suitable media |
Water, steam, food and so on |
|
The main shape and connection dimensions
|
Nominal diameter |
The main dimensions and connection dimensions |
|||||||
|
L |
D |
D1 |
D2 |
b |
Z-d |
H |
D0 |
|
|
J41F-16C |
||||||||
|
15 |
130 |
95 |
65 |
45 |
14-2 |
4-Φ14 |
170 |
120 |
|
20 |
150 |
105 |
75 |
55 |
14-2 |
4-Φ14 |
190 |
140 |
|
25 |
160 |
115 |
85 |
65 |
14-2 |
4-Φ14 |
205 |
160 |
|
32 |
180 |
135 |
100 |
78 |
16-2 |
4-Φ18 |
270 |
180 |
|
40 |
200 |
145 |
110 |
85 |
16-3 |
4-Φ18 |
310 |
200 |
|
50 |
230 |
160 |
125 |
100 |
16-3 |
4-Φ18 |
358 |
240 |
|
65 |
290 |
180 |
145 |
120 |
18-3 |
4-Φ18 |
373 |
240 |
|
80 |
310 |
195 |
160 |
135 |
20-3 |
8-Φ18 |
435 |
280 |
|
100 |
350 |
215 |
180 |
155 |
20-3 |
8-Φ18 |
500 |
300 |
|
125 |
400 |
245 |
210 |
185 |
22-3 |
8-Φ18 |
614 |
320 |
|
150 |
480 |
280 |
240 |
210 |
24-3 |
8-Φ23 |
674 |
360 |
|
200 |
600 |
335 |
295 |
265 |
26-3 |
12-Φ23 |
811 |
400 |
|
250 |
650 |
405 |
355 |
320 |
30-3 |
12-Φ25 |
969 |
450 |
|
300 |
750 |
460 |
410 |
375 |
30-3 |
12-Φ25 |
1145 |
580 |
|
350 |
850 |
520 |
470 |
435 |
34-4 |
16-Φ25 |
1280 |
640 |
|
400 |
980 |
580 |
525 |
485 |
36-4 |
16-Φ30 |
1452 |
640 |
|
J41F-25C |
||||||||
|
15 |
130 |
95 |
65 |
45 |
16-2 |
4-Φ14 |
170 |
120 |
|
20 |
150 |
105 |
75 |
55 |
16-2 |
4-Φ14 |
190 |
140 |
|
25 |
160 |
115 |
85 |
65 |
16-2 |
4-Φ14 |
205 |
160 |
|
32 |
180 |
135 |
100 |
78 |
18-2 |
4-Φ18 |
270 |
180 |
|
40 |
200 |
145 |
110 |
85 |
18-3 |
4-Φ18 |
310 |
200 |
|
50 |
230 |
160 |
125 |
100 |
20-3 |
4-Φ18 |
358 |
240 |
|
65 |
290 |
180 |
145 |
120 |
22-3 |
8-Φ18 |
373 |
240 |
|
80 |
310 |
195 |
160 |
135 |
22-3 |
8-Φ18 |
435 |
280 |
|
100 |
350 |
230 |
190 |
160 |
24-3 |
8-Φ23 |
500 |
300 |
|
125 |
400 |
270 |
220 |
188 |
28-3 |
8-Φ25 |
614 |
320 |
|
150 |
480 |
300 |
250 |
218 |
30-3 |
8-Φ25 |
674 |
360 |
|
200 |
600 |
360 |
310 |
278 |
34-3 |
12-Φ25 |
811 |
400 |
|
250 |
650 |
425 |
370 |
332 |
36-3 |
12-Φ30 |
969 |
450 |
|
300 |
750 |
485 |
430 |
390 |
40-4 |
16-Φ30 |
1145 |
580 |
|
350 |
850 |
550 |
490 |
448 |
44-4 |
16-Φ34 |
1280 |
640 |
|
400 |
980 |
610 |
550 |
505 |
48-4 |
16-Φ34 |
1452 |
640 |
