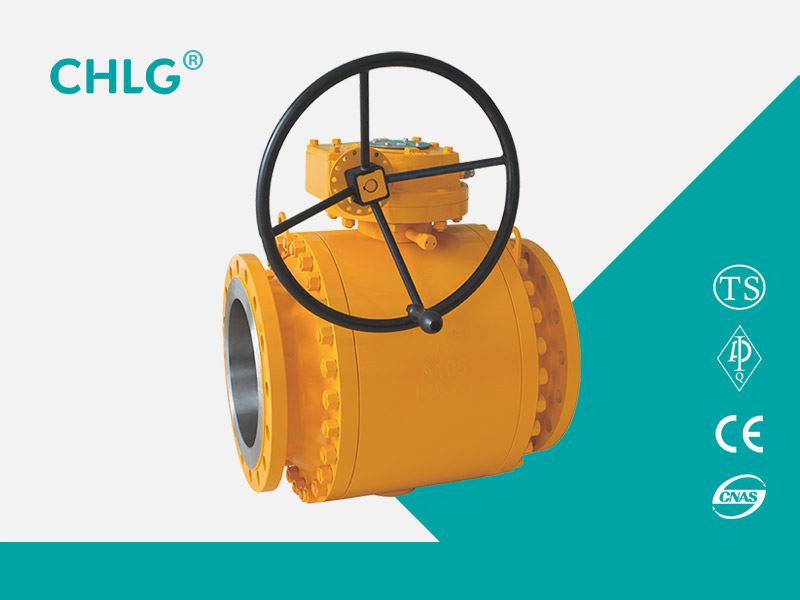

Turbine Flange Ball Valve
Name:

Turbine Flange Ball Valve

Category：

Ball valve

Remark:

Q347F type PN16 ~ PN64 forged steel fixed ball valve is used in various pipelines of Class150 ~ Class1500, PN16 ~ PN64, JIS10K ~ JIS20K, used to cut off or connect the medium in the pipeline, choose different materials, can be suitable for water respectively , Steam, oil, liquefied gas, natural gas, coal gas, nitric acid, acetic acid, oxidizing media, urea and other media.

Inquiry Contact us
【Product Usage】
Q347F type PN16 ~ PN64 forged steel fixed ball valve is used in various pipelines of Class150 ~ Class1500, PN16 ~ PN64, JIS10K ~ JIS20K, used to cut off or connect the medium in the pipeline, choose different materials, can be suitable for water respectively , Steam, oil, liquefied gas, natural gas, coal gas, nitric acid, acetic acid, oxidizing media, urea and other media.

【Features】
1. Among the various valves, the flow resistance of the ball valve is the smallest. When the full-diameter ball valve is opened , the diameter of the ball channel, the valve body channel and the connecting pipe are equal and form a diameter, and the medium can flow almost without loss
2. The ball valve can be fully closed and fully opened by rotating 90 °, opening and closing quickly. Compared with the gate valve and globe valve of the same specification , the ball valve is small in size and light in weight, which is convenient for pipeline installation

【Performance parameters】
Working pressure (MPa)
1.6 ~ 25.0
Applicable temperature (℃)
≤180
Applicable medium
Water, steam, oil
Weak corrosive medium
material
Valve body, bonnet
Carbon steel cast steel
Chrome nickel stainless steel
Ball, stem
Chromium / chrome nickel / chromium nickel molybdenum stainless steel
Chrome nickel stainless steel
Sealing ring
Flexible graphite washer / 316 + flexible graphite washer
filler
Polytetrafluoroethylene





【Main connection size】
PN
DN
L
D
K
d
Y
b
Z-d0
Ws
Hs
Hw
Hd
1.6MPa
40
165
145
110
85
-
16
4-18
230
135
-
-
50
203
160
125
100
-
16
4-18
260
150
-
-
65
222
180
145
120
-
18
4-18
350
180
-
-
80
241
195
160
135
-
20
8-18
500
195
-
-
100
305
215
180
155
-
20
8-18
650
245
310
420
125
356
245
210
185
-
twenty two
8-18
800
270
330
440
150
394
280
240
210
-
twenty four
8-23
1000
295
390
470
200
457
335
295
265
-
26
12-23
-
-
440
510
250
533
405
355
320
-
30
12-25
-
-
490
560
300
610
460
410
375
-
30
12-25
-
-
530
600
350
686
520
470
435
-
34
16-25
-
-
620
670
400
762
580
525
485
-
36
16-30
-
-
675
720
450
864
640
585
545
-
40
20-30
-
-
740
790
500
914
705
650
608
-
44
20-34
-
-
825
870
600
1067
840
770
718
-
48
20-41
-
-
920
960
2.5MPa
40
190
145
110
85
-
18
4-18
230
135
-
-
50
216
160
125
100
-
20
4-18
260
150
-
-
65
241
180
145
120
-
twenty two
8-18
350
180
-
-
80
283
195
160
135
-
twenty two
8-18
500
195
-
-
100
305
230
190
160
-
twenty four
8-23
650
245
310
420
125
381
270
220
188
-
28
8-25
800
270
330
440
150
403
300
250
218
-
30
8-25
1000
295
390
470
200
502
360
310
278
-
34
12-25
-
-
440
510
250
568
425
370
332
-
36
12-30
-
-
490
560
300
648
485
430
390
-
40
16-30
-
-
530
600
350
762
550
490
448
-
44
16-34
-
-
620
670
400
838
610
550
505
-
48
16-34
-
-
675
720
450
914
660
600
555
-
50
20-34
-
-
740
790
500
991
730
660
610
-
52
20-41
-
-
825
870
600
1143
840
770
718
-
56
20-41
-
-
920
960
4.0MPa
40
190
145
110
85
76
18
4-18
230
135
-
-
50
216
160
125
100
88
20
4-18
260
150
-
-
65
241
180
145
120
110
twenty two
8-18
350
180
-
-
80
283
195
160
135
121
twenty two
8-18
500
195
-
-
100
305
230
190
160
150
twenty four
8-23
800
250
320
430
125
381
270
220
188
176
28
8-25
1000
280
340
450
150
403
300
250
218
204
30
8-25
1200
300
405
480
200
502
375
320
282
260
38
12-30
-
-
450
530
250
568
445
385
345
313
42
12-34
-
-
505
590
300
648
510
450
408
364
46
16-34
-
-
545
620
350
762
570
510
465
422
52
16-34
-
-
640
690
400
838
655
585
535
474
58
16-41
-
-
690
740
450
914
680
610
560
524
60
20-41
-
-
760
810
500
991
755
670
612
576
62
20-48
-
-
850
900
6.4MPa
40
241
165
125
95
76
twenty four
4-23
260
140
-
-
50
292
175
135
105
88
26
4-23
260
160
-
-
65
330
200
160
130
110
28
8-23
350
180
-
-
80
356
210
170
140
121
30
8-23
500
220
-
-
100
406
250
200
168
150
32
8-25
800
250
320
430
125
450
295
240
202
176
36
8-30
1000
295
340
450
150
495
340
280
240
204
38
8-34
1200
340
405
480
200
597
405
345
300
260
44
12-34
-
-
450
530
250
673
470
400
352
313
48
12-41
-
-
505
590
300
762
530
460
412
364
54
16-41
-
-
545
620
350
826
595
525
475
422
60
16-41
-
-
640
690
400
902
670
585
525
474
66
16-48
-
-
690
740
500
1054
800
705
640
576
70
20-54
-
-
760
810
10.0MPa
40
241
165
125
95
76
26
4-23
260
160
-
-
50
292
195
145
112
88
28
4-25
350
180
-
-
65
330
220
170
138
110
32
8-25
500
200
-
-
80
356
230
180
148
121
34
8-25
800
240
310
410
100
432
265
210
172
150
38
8-30
1000
270
340
450
125
508
310
250
210
176
42
8-34
1200
320
360
505
150
559
350
290
250
204
46
12-34
-
-
425
555
200
660
430
360
312
260
54
12-41
-
-
470
625
250
787
500
430
382
313
60
12-41
-
-
525
645
300
838
585
500
442
364
70
16-48
-
-
565
715
350
889
665
560
498
422
76
16-54
-
-
670
770
400
991
715
620
558
474
80
16-54
-
-
720
840
16.0MPa
40
305
175
125
92
76
32
4-27
350
160
-
-
50
368
215
165
132
88
36
8-25
500
180
-
-
65
419
245
190
152
110
44
8-30
800
200
-
-
80
425
260
205
168
121
46
8-30
1000
240
310
410
100
457
300
240
200
150
48
8-34
1200
270
340
450
125
559
355
285
238
176
60
8-41
-
-
360
505
150
610
390
318
270
204
66
12-41
-
-
425
560
200
737
480
400
345
260
78
12-48
-
-
530
630
250
838
580
485
425
313
88
12-54
-
-
570
720
300
965
665
570
510
364
100
16-54
-
-
680
780
20.0MPa
40
305
170
124
90
56
34
4-27
500
180
-
-
50
368
210
160
128
70
40
8-28
650
200
-
-
65
419
260
203
165
97
48
8-30
800
220
-
-
80
470
290
230
190
116
54
8-34
1000
260
320
420
100
564
360
292
245
138
66
8-41
1200
290
360
470
125
673
385
318
270
170
76
12-41
-
-
380
530
150
705
440
360
305
190
82
12-41
-
-
440
580
200
832
535
440
380
245
92
12-48
-
-
550
650
250
991
670
572
508
319
110
12-54
-
-
590
740
25.0MPa
40
305
180
124
92
68.28
32
4-29.5
500
180









50
368
215
165
124
95.25
38.5
8-26
650
200









65
419
245
190.5
137
107.95
41.5
8-29.5
800
220









80
470
265
203
168
136.52
48
8-32.5
1000
260
320
420
100
564
310
241.5
194
161.92
54
8-35.5
1200
290
360
470
125
673
375
292
229
193.68
73.5
8-42









380
530
150
705
395
317.5
248
211.12
83
12-39









440
580
200
832
485
393.5
318
269.88
92
12-45









550
650
